Sodium silicate water glass kiln discharging machine

Your current location: Home >> Product >> Sodium silicate paohuajian chain plate

Sodium silicate water glass kiln discharging machine

  • category:Sodium silicate paohuajian chain plate

  • The number of clicks:
  • Release date:2016/07/04
  • Online Inquiry
Details

Sodium silicate water glass kiln discharging machine

Sodium silicate water glass kiln discharging machine

Sodium silicate discharging chain plate


Product features

Sodium silicate, also known as paohuajian, it is made from silica sand and soda ash, sand and alkali than said: module (m). The solid sodium silicate under high temperature and high pressure to dissolve, into a liquid sodium silicate can be used. Paohuajian manufacture process can be divided into two kinds of dry method and wet method, is usually used by the production of dry solid paohuajian, quartz sand, soda ash, mixed in certain proportion to kiln, high-temperature melting, water quenching after the packaging is solid paohuajian. Solid paohuajian for transportation and storage.

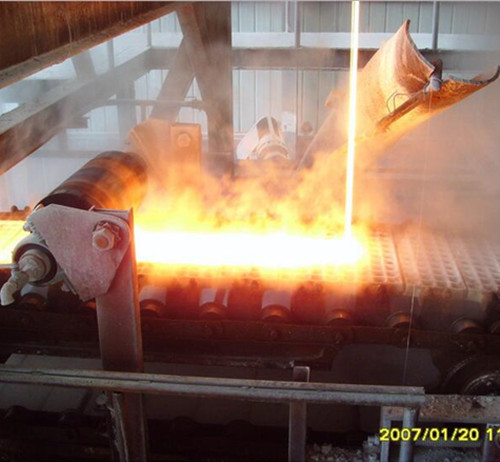

Paohuajian discharging chain plate is dry discharging device, is the ideal equipment of factory to clean civilization.

Paohuajian of water quench process using a large amount of cooling water caused great pollution to the environment, and generate a certain loss, and USES the plate chain, the production of solid paohuajian only use cooling water cooling roller chain plate at the bottom of the chain plate, recycling cooling water can be recycled to repeat, will not damage to the environment; Cooling water is not direct contact with the material, improve the quality of the finished product, guarantee the purity of the dry process of discharging material. Conveying process adopts frequency conversion control, can be adjusted according to the material flow, the formation of solid material and beautiful appearance, high transparency, facilitate the packing and shipping.

The use of chain machine condition

1. Forming medium: paohuajian, rho = 2.48 / cm3 temperature 1480 ℃

2. The product shape: 42 * 42 * 25 vertebral bodies (also can according to user requirements change)

3. Throughput: 4-10 t/h

4. The chain plate length: 500-1000 - mm

5. The requirement of blanking point: kiln discharging mouth to chain plate blanking point height is 1150 mm

6. Press roll cooling way: water

7. Climbing Angle: 15 ° or less

8. The switchboard length: 9 m, 30 m

Plate chain, the operation requirements

1. The plate chain, the optimal output of the inverter frequency conversion speed 2 m/min.

2. The chain plate under any circumstances are unidirectional.

3. Bearing for grease lubrication of chain plate, usually once every quarter needs to check, come on.

4. The chain to plus oil lubrication, gas at least once per shift, winter and summer with different dilute viscous oil.

5. Check the operation of the conveyor chain, such as the discovery chain plate pitch increased due to abrasion, should timely adjust the tail frame on tension device, the appropriate adjustments, to maintain the normal running smoothly.

Sodium silicate water glass kiln discharging machine
